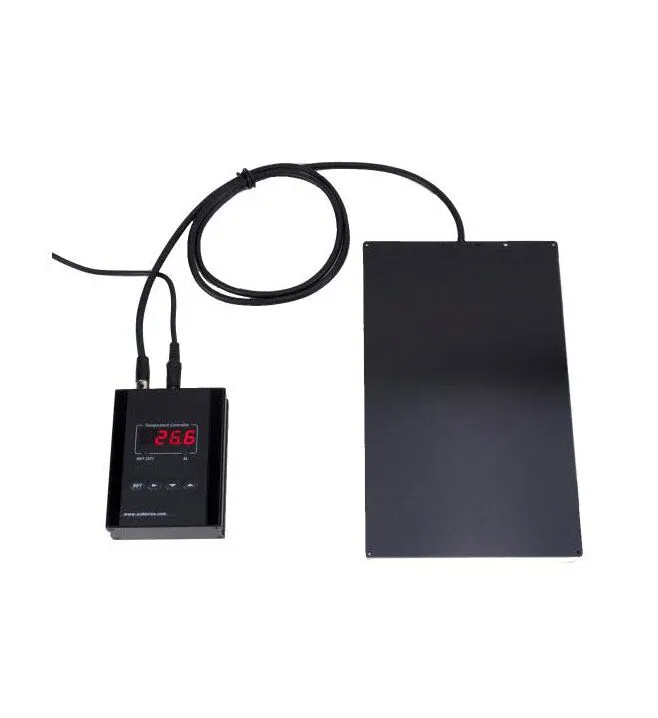

Animal Temperature Heating Pad w/PID Controller


The Somni DC Powered Heat plate with controller is an ultra-slim, low noise heating plate. It allows researchers to maintain the animal’s body temperature at a specific and precise temperature. The power input of the controller is 12 VDC (AC-DC power adapter is included). This low voltage reduces electric noise generated from the heating current. Uniform temperature distribution is achieved over the entire surface, while keeping the plate thin and cost low.

Additional Information

Input Voltage12 VDC
Output Voltage12 VDC
Temperature Display Range0-50.0 C
Min. Control Temp5 C above ambient
Max Control Temp50.00 C
Temp accuracy+/- 0.1 C (in 25-50 C range)
Controller Dimensions80x 30x 107mm (3.1x 1.2×4.2″)
Weight97 kg (2 lb)
Heat Pad DimensionsHT-15002: 250 x 150mm (9.Bx 5.9″)
HT-15003: 140 X 80 mm
Heat Pad Thickness2mm (0.08″)
Heat Pad Wattage36W at 12VDC
Warranty1 year
