Description

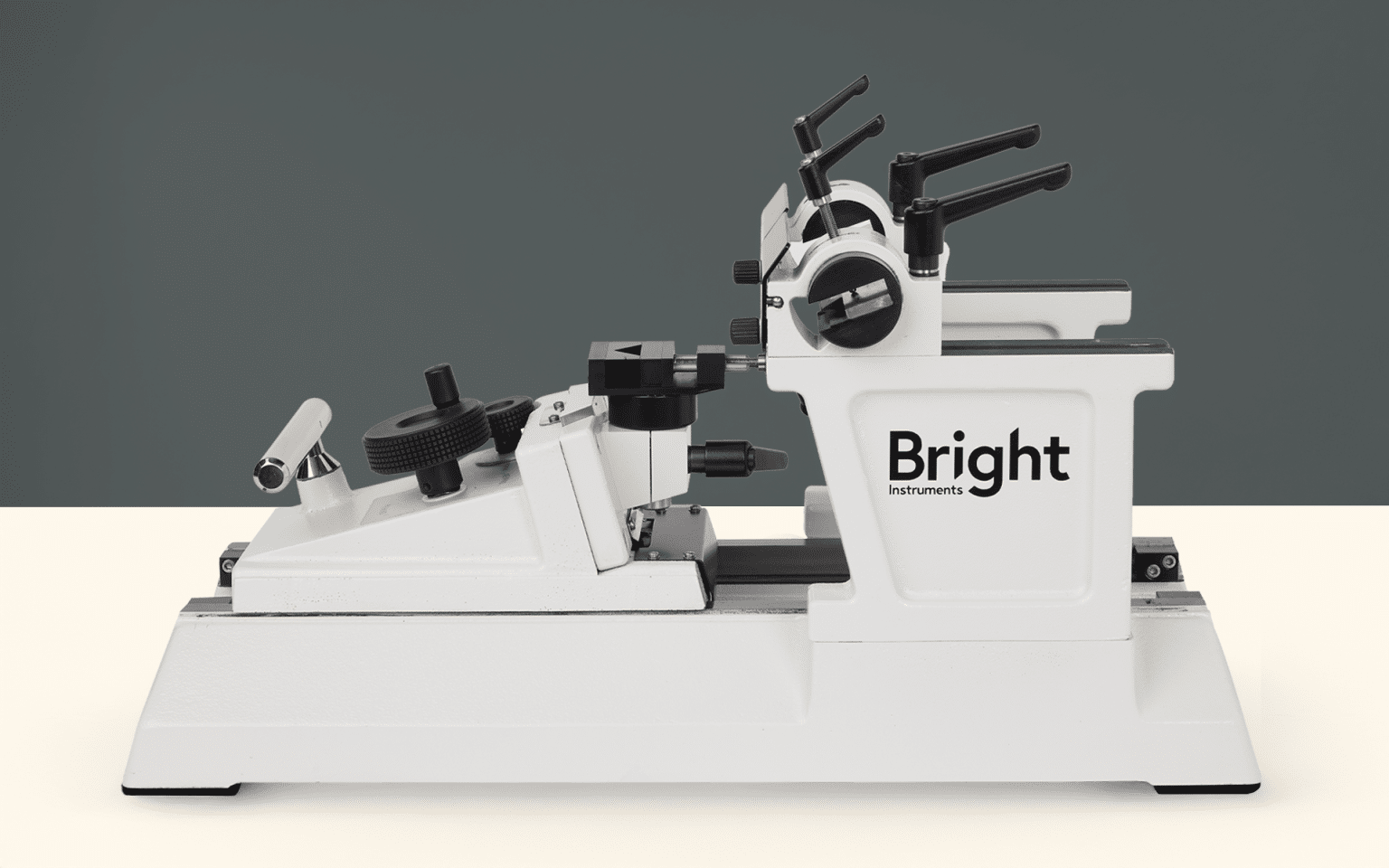

The Bright Instruments 8000 Sledge Microtome delivers high accuracy, strength, and reliability for routine and specialized laboratory sectioning. Its versatile design allows precise cutting of a wide variety of specimen types while maintaining specimen integrity and operator safety.
The 8000 Sledge Microtome is ideal for histology laboratories, research facilities, and material science units requiring consistent and reproducible sectioning of large or challenging samples.
Applications
The 8000 Sledge Microtome accommodates a broad spectrum of specimen types:
- Biological Tissues: Large area soft tissues, bone, and other dense biological specimens
- Materials Science: Plastics, resins, wood, and composite materials
- Laboratory Research: Samples requiring temperature controlled sectioning with optional accessories
This versatility makes it suitable for both routine histology workflows and advanced research applications.
Key Features
Retracting Base for Specimen Protection
The 8000 Microtome incorporates a retracting base on the return stroke, reducing the risk of specimen damage and ensuring smooth, consistent sectioning.

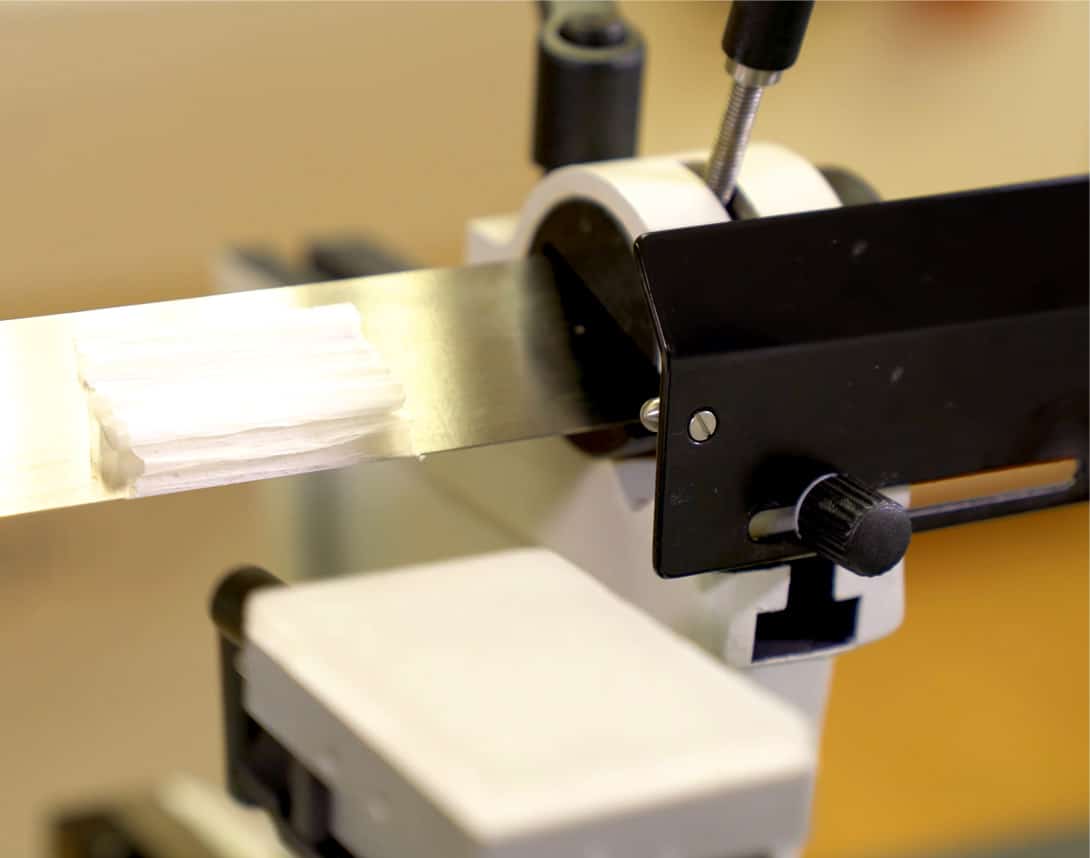

Adjustable Knife Support
- Knife support pillars can be reversed to increase block width from 110 mm to 170 mm
- Knife clamps provide rigidity and allow angle tilt and slew adjustments
- Optional single side double clamp knife holder available
- Knife sharpening service offered for enhanced cutting performance
Versatile Stages and Accessories
- Wide range of stage sizes to accommodate large and irregular samples

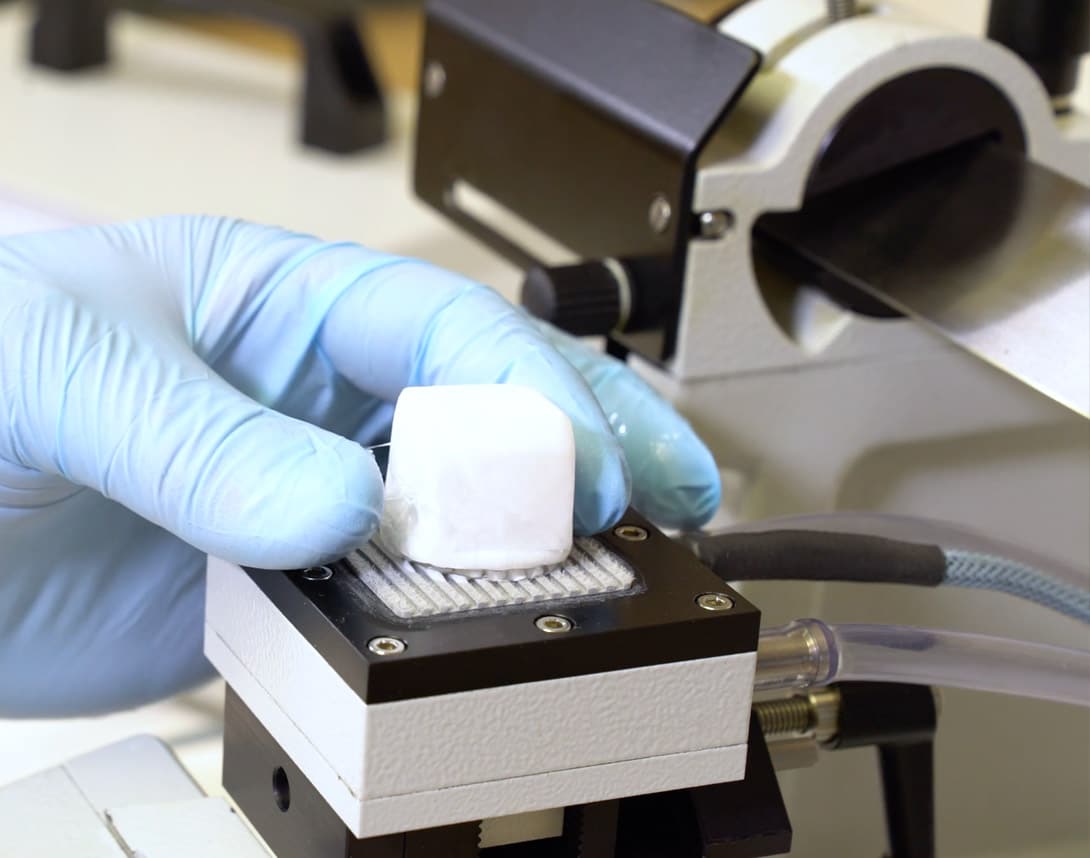

- Optional Solid State Freezer with recirculating chiller allows temperature controlled sectioning for specimens requiring cooling below room temperature

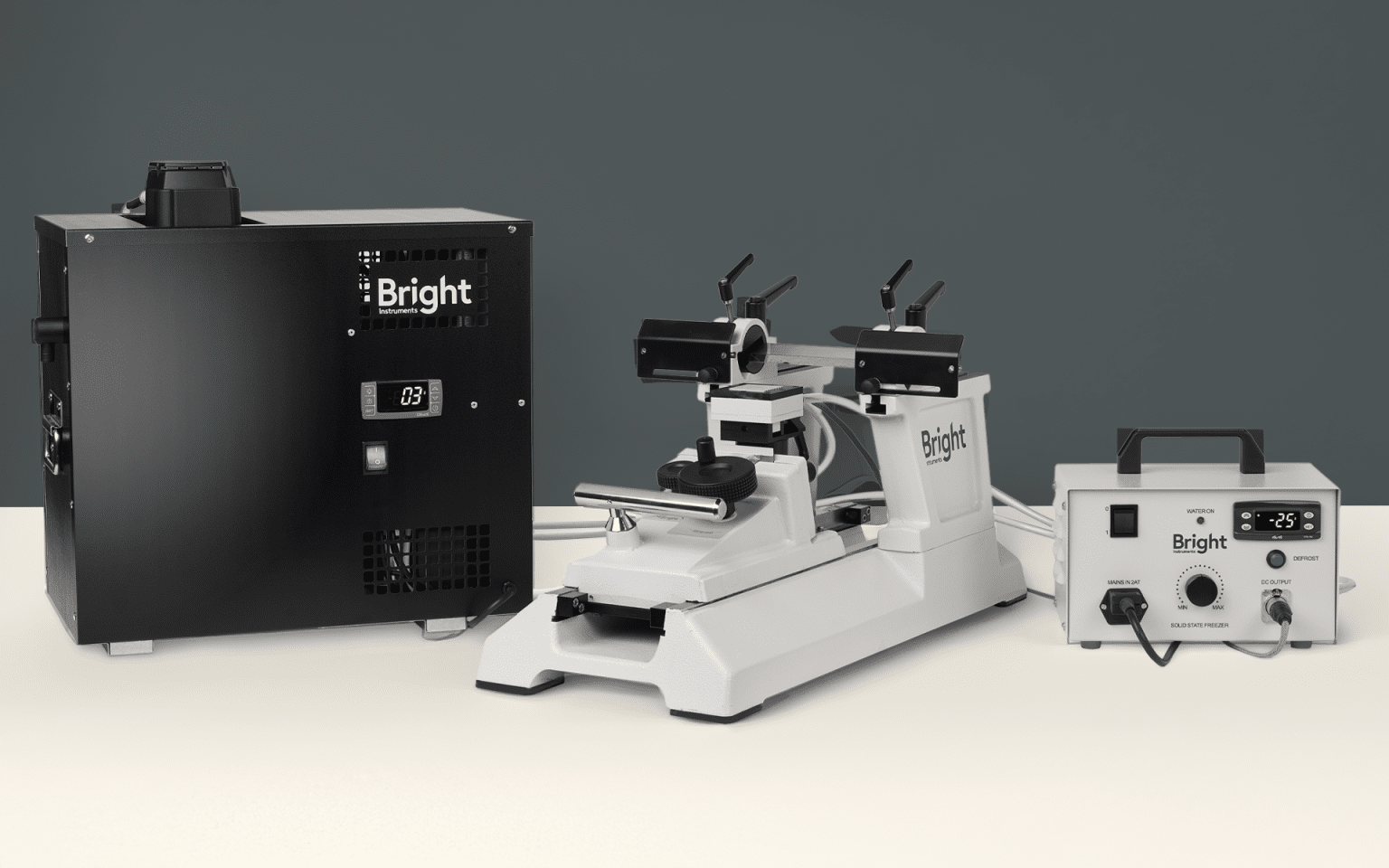

- Compatible with Bright Instruments Solid State Freezer for integrated laboratory workflows
Design and Durability
The 8000 Sledge Microtome is engineered for long-term reliability and professional use:
- Robust construction for heavy and repeated use
- Precision engineered components for accurate sectioning
- Versatile configuration to adapt to routine histology or specialized cutting requirements
Efficiency and Safety
- Retraction on return stroke protects delicate specimens
- Adjustable and reversible knife support ensures operator flexibility
- Compatible with temperature-controlled accessories for consistent section quality
