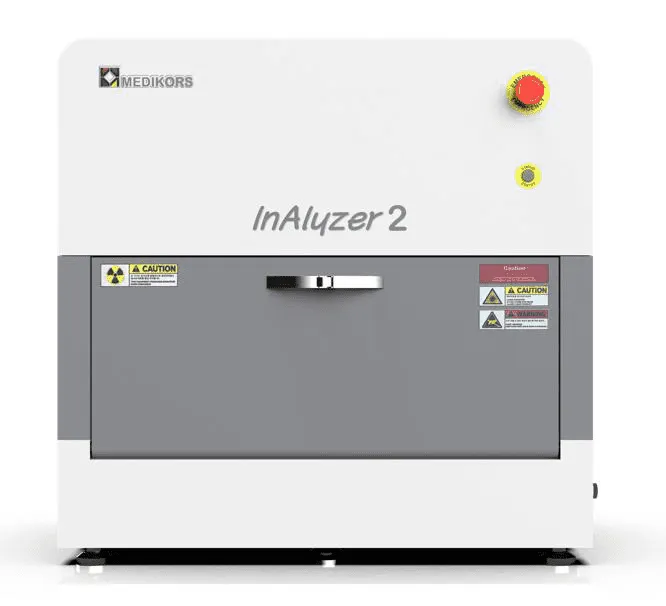

InAlyzer 2

Description

The InAlyzer DEXA scan offers precise analysis of bone mineral density (BMD) and body composition (including BMC, fat, and lean mass) in live laboratory animals with an accuracy of 0.001g. This system requires only simple anesthesia and eliminates the need for dissection, enabling serial assessments of each animal without compromising their welfare or incurring additional costs. The built-in radiation shielding ensures the safety of researchers, making the InAlyzer an ideal tool for preclinical studies.

Optional Model for Mid-Sized Animals

Tailored for mid-sized laboratory animals such as rabbits and guinea pigs, the InAlyzer DEXA scan is designed to save time, reduce costs, and minimize the use of animals. Its automated, accurate, and precise measurement capabilities make it an invaluable tool for longitudinal studies

Longitudinal Study Capability

Data collection can be repeated over the study period for the same animals, with minimal stress, using simple anesthesia and no dissection. This enables researchers to track changes in bone and body composition over time, with the flexibility to add test factors like pharmaceutical, genetic, or dietary interventions to the study.

High-Resolution Imaging

With a resolution of 5.0 lp/mm, the InAlyzer provides detailed structural images, including bone and body composition visuals. It also includes a trend analysis function, allowing for the creation of trend graphs that make it easier to interpret study data.

Compact and Safe Design

The InAlyzer is a compact desktop instrument with internal lead shielding, ensuring a safe working environment. It is designed for continuous use with minimal downtime, making it an efficient addition to any research lab.

Effortless Reporting

Users can easily generate and organize reports, storing data in .CSV format and images in .TIFF format for convenient editing and analysis.

Built-In Monitoring Camera

The InAlyzer is equipped with a real-time optical camera that allows users to monitor animal movement inside the instrument chamber, even when the lead-shielded door is closed.

Anesthesia Access Point

Designed with a convenient access point on the left side, the InAlyzer ensures a continuous flow of anesthetic gas, immobilizing the animal during imaging for accurate and reliable results.

Customizable Scan Time

The InAlyzer offers rapid bone mineral density and body composition scans, with total body imaging results available in just 28 seconds for sacrificed animals. For live animals, we recommend an 84-second scan to account for respiratory movement. The fast imaging process provides quick data access, reducing stress for the animals.

Comparison with Lunar PIXImus

The InAlyzer DEXA system provides up to five times faster results compared to the Lunar PIXImus, with superior precision. The InAlyzer also supports animals as large as 3000 grams, while the PIXImus is limited to 50 grams, making it a more versatile option for a wider range of laboratory animals.

Specifications

• Scan Time:
  • Sacrificed Animals: 28 seconds
  • Live Animals: 84 seconds
• Image Pixel Pitch: 99 x 99 μm
• Image Area: 8.27 x 12.4 in
• Animal Size: 18–71 oz
• Precision:
  • Ex-Vivo: <2% CV
  • In-Vivo: <5% CV
  • SD: <1%
• ROI Selection:
  • 30 ROI, 10 XROI, 30 CROI, 10 CXROI
• Results:
  • Body Composition: Fat, Lean, BMC, BMD, Fat Percentage
• Positioning: Center preferred within the scan area
• Computer: Windows 10 PC or Laptop
• Physical Dimensions: 30(W) x 17(D) x 29(H) in
• Power Environment: 100–240 VAC, 50-60 Hz
• Beam Type: Fan Beam
• Weight: 304 lbs

The InAlyzer DEXA scan is a highly accurate, fast, and safe tool that enhances the capabilities of preclinical research while minimizing the impact on animal subjects and reducing overall study costs.
